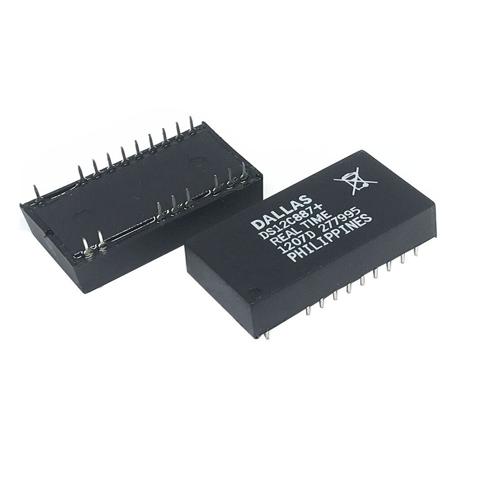

DS12C887 IC – Real Time Clock (RTC) IC

Description

1. Real-Time Clock: The DS12C887 is primarily designed for accurate timekeeping, including hours, minutes, seconds, day of the week, date, month, and year.
2. Battery Backup: It typically includes a small built-in battery (often a lithium coin cell) for backup power. This ensures that the RTC continues to function and retain time information even when the main power source is disconnected, making it suitable for applications that need to maintain time during power interruptions.
3. I2C and SPI Interfaces: The DS12C887 can communicate with a microcontroller or other devices through both I2C (Inter-Integrated Circuit) and SPI (Serial Peripheral Interface) interfaces, providing flexibility for integration into various electronic systems.
4. Low Power Consumption: This RTC IC is designed to operate with low power consumption, which is important for battery-powered or low-power applications, as it extends the life of the backup battery.
5. Oscillator Circuit: The DS12C887 contains an oscillator circuit to maintain accurate timekeeping. It can be used with an external crystal oscillator for enhanced timekeeping precision.
6. Alarm Function: The IC typically offers alarm functionality, allowing you to set specific times when the RTC can trigger an interrupt or other events.
7. Square-Wave Output: It can generate a square wave output signal with selectable frequencies, which can be used as a clock source for microcontrollers or other devices.
8. Non-volatile RAM: Some versions of the DS12C887 also include non-volatile RAM (NVRAM) for data storage.
9. Wide Range of Applications: The DS12C887 RTC IC is used in various applications, including embedded systems, microcontroller-based projects, and devices requiring precise timekeeping, such as digital clocks, data loggers, and timer circuits.
