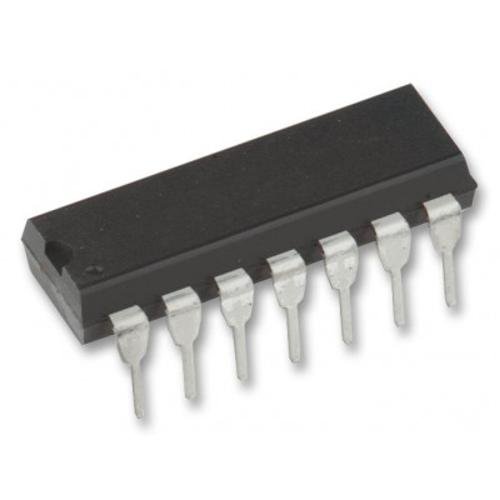

LM723 Voltage Regulator IC (Pack Of 5)

Description

1. IC Type: The LM723 is a voltage regulator IC.
2. Adjustable Voltage Regulation: It is known for its ability to provide adjustable and precise output voltage regulation.
3. Wide Voltage Range: The LM723 can handle a wide input voltage range and is capable of regulating both positive and negative voltages.
4. Variable Output Voltage: The output voltage can be precisely adjusted within a specified range, making it suitable for various voltage regulation needs.
5. Current Limiting: It has current-limiting and thermal shutdown features to protect the circuit from overcurrent or overheating conditions.
6. Applications: The LM723 is used in various applications, including as a power supply voltage regulator, battery charger, voltage reference, and as a control element in feedback systems.
7. Pin Configuration: The IC typically has an adjustable reference input (ADJ), non-inverting input (+IN), inverting input (-IN), output (OUT), and control voltage pins for voltage regulation.
8. Voltage Reference: The LM723 can serve as a voltage reference source for other circuits.
9. Temperature Stability: It is designed for temperature stability to ensure reliable and consistent performance across a range of operating conditions.
10. Versatile Usage: The LM723 can be used in both linear and switching voltage regulator applications.
11. External Components: The LM723 requires external components like resistors and capacitors to set the desired output voltage and improve stability.
12. Datasheet: For detailed information on its electrical characteristics, pin configuration, and recommended usage, refer to the datasheet provided by the manufacturer.
