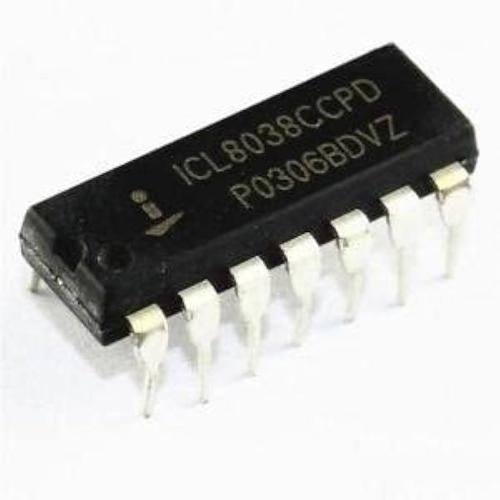

ICL8038 Precision Waveform Generator/Voltage Controlled Oscillator IC – DIP-14 Package

Description

1. Waveform Generation: The ICL8038 is primarily used for generating a wide range of waveforms, including sine, square, and triangular waves, making it suitable for a variety of analog signal generation tasks.
2. High Precision: It offers precise control over the frequency and shape of the generated waveforms, making it ideal for applications where accuracy is critical.
3. Voltage Controlled Oscillator (VCO): The ICL8038 can be used as a VCO by varying an external voltage, allowing for frequency modulation and signal synthesis.
4. Frequency Range: It typically covers a broad frequency range, making it suitable for applications spanning from audio frequencies to radio frequencies.
5. DIP-14 Package: The ICL8038 is usually available in a 14-pin Dual Inline Package (DIP), which facilitates easy mounting on a circuit board using through-hole soldering.
