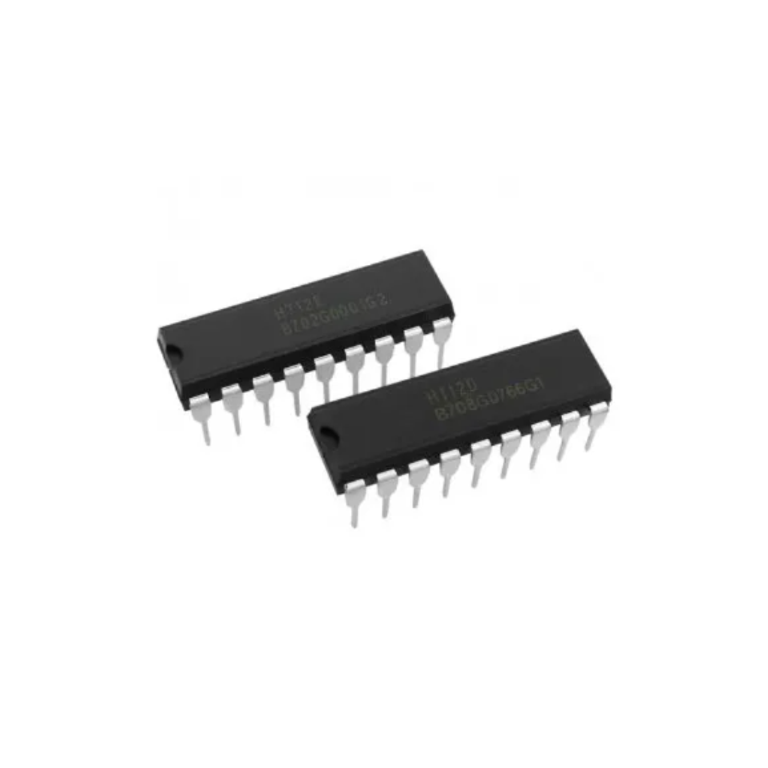

HT12E + HT12D Encoder Decoder IC’s (Pair of 1)

Description

HT12E Encoder IC:

• Function: The HT12E is an encoder IC used to encode data inputs into a serial bit stream for wireless transmission.
• Address and Data Pins: It typically has 8 address pins and 4 data pins, allowing for 8-bit address and 4-bit data coding.
• Data Transmission: Converts parallel data inputs into a serial output that can be sent to a transmitter for wireless transmission.
• Applications: Commonly used in remote control systems, wireless security systems, and other applications where data needs to be transmitted wirelessly.

HT12D Decoder IC:

• Function: The HT12D is a decoder IC used to decode the serial bit stream received wirelessly and convert it back into parallel data.
• Address and Data Pins: It typically has 8 address pins and 4 data pins, matching the configuration of the HT12E.
• Data Reception: It receives the transmitted serial data, decodes it, and provides parallel data outputs for further processing.
• Applications: Used in the receiver part of remote control systems, allowing the received signals to control various devices.
