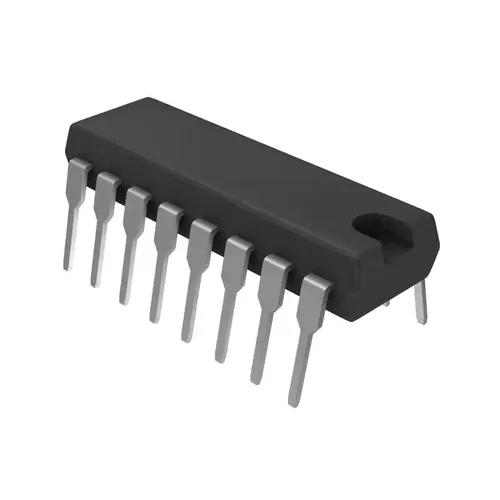

CD4518 Dual BCD Up Counter IC DIP-16 Package (Pack Of 5)

Description

1. IC Type: CD4518 is a dual BCD up-counter IC, meaning it has two separate counter units within a single IC package.
2. Dual Counter: This IC contains two independent BCD up-counter units, which means it can count in BCD format.
3. BCD Counter: BCD is a binary encoding of decimal numbers. This counter counts in decimal digits, making it suitable for applications where you need to count or display decimal values.
4. Up Counter: It is an up-counter, which means it increments the count as the clock signal is applied.
5. DIP-16 Package: The IC is housed in a DIP-16 (Dual In-line Package) configuration, making it easy to use in through-hole PCB designs.
6. Input Pins: Each counter unit has a clock input and a clear input. The clock input is used to increment the count, and the clear input resets the count to zero.
7. Output Pins: Each counter unit typically has BCD outputs (Q0, Q1, Q2, and Q3), which provide the binary representation of the current count.
8. Cascadeable: These counters are often cascadeable, allowing you to connect multiple CD4518 ICs to create larger counting circuits.
9. Applications: The CD4518 is commonly used in various applications, including digital display systems, frequency dividers, and event counters.
10. Voltage Compatibility: It’s important to check the voltage compatibility of the CD4518 with your application, as it might vary depending on the version or manufacturer.
11. Datasheet: For detailed information on electrical characteristics, pin configuration, and usage, it’s essential to refer to the datasheet provided by the manufacturer.
