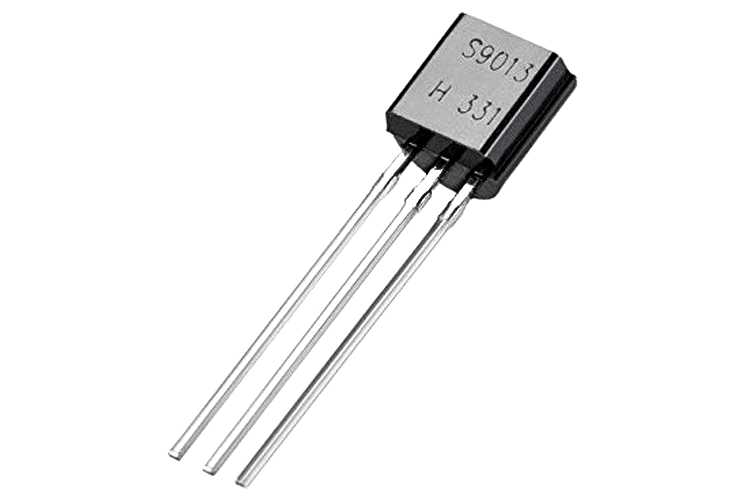

S9013 PNP Transistor

Description

1. PNP Transistor: The S9013 is a PNP type transistor, meaning it allows current to flow from the emitter to the collector when a small current is applied to the base terminal. PNP transistors are commonly used for switching and amplification applications.

2. Low Voltage and Current Ratings: The S9013 has relatively low voltage and current ratings, making it suitable for low-power applications where moderate current handling capabilities are required.

3. Common Emitter Configuration: The S9013 is typically used in common emitter configuration, which is a common setup for amplification applications. In this configuration, the emitter is the common terminal between the input and output signals.

4. General Purpose: It is a general-purpose transistor and finds applications in various electronic circuits, including amplifiers, oscillators, and switching circuits, especially in low-power and low-frequency applications.

5. TO-92 Package: The TO-92 package is a widely used plastic encapsulated package with three leads, making it easy to handle and mount on a circuit board. This package is suitable for various DIY projects and prototyping.
