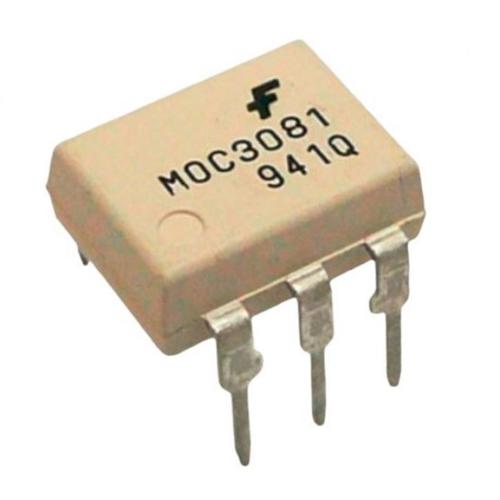

MOC3081 IC – Triac Driver Optocoupler IC

Description

1. Optical Isolation: The MOC3081 offers electrical isolation between the input and output circuits, ensuring the safety of low-voltage control electronics and preventing noise or interference between the low-voltage and high-voltage circuits.
2. Input Side (LED): The input side of the MOC3081 features an infrared LED. When a current is applied to this LED, it emits infrared light, which is used to trigger the output side.
3. Output Side (Triac Driver): The output side of the MOC3081 includes a triac driver circuit. A triac is a solid-state device used for switching AC loads. The MOC3081 is specifically designed to provide the necessary gate current to trigger a triac for controlling AC power.
4. Zero-Crossing Detector: The MOC3081 often includes a zero-crossing detector circuit, allowing it to trigger the triac at specific points in the AC waveform, typically at the zero voltage crossing point. This feature minimizes electromagnetic interference (EMI) and ensures smooth switching of AC loads.
5. AC Input Compatibility: The MOC3081 is designed for use with AC input signals. It is ideal for applications where you need to control AC power, such as light dimmers, motor speed control, and heating control.
6. Compact DIP Package: The MOC3081 is typically available in a Dual Inline Package (DIP) with through-hole pins for easy mounting on a circuit board.
