LM380 2.5-Watt Audio Power Amplifier IC DIP-14 Package

Description

1. IC Type: The LM380 is an audio power amplifier IC designed to amplify audio signals.
2. Amplification Power: It provides a power output of approximately 2.5 watts, making it suitable for driving small to medium-sized speakers in audio applications.

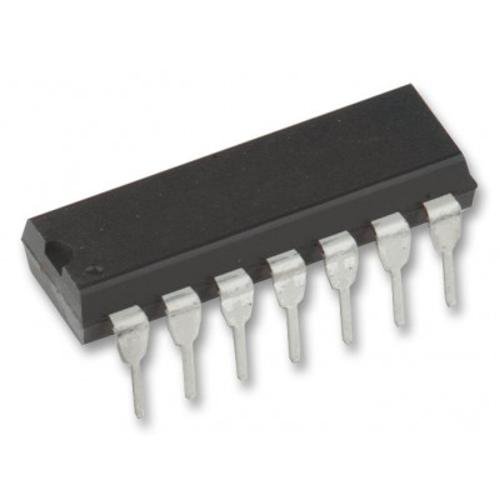

3. DIP-14 Package: The IC comes in a DIP-14 package, which is a through-hole package style, commonly used for easy integration into standard PCB designs.
4. Input Pins: The LM380 typically has input pins for connecting audio signals from sources like a microphone, line-in, or other audio devices.
5. Output Pins: It provides output pins for connecting to speakers or headphones, depending on your application.
6. Single Supply Operation: The LM380 can operate with a single power supply, simplifying its use in various applications.
7. Applications: The LM380 is commonly used in various audio applications, including amplifiers for small speakers, intercom systems, portable radios, and other projects where audio amplification is needed.
8. Voltage and Current Requirements: Ensure that you power the IC with the appropriate voltage and current as specified in the datasheet for optimal performance.
9. Low Distortion: The IC is designed for low distortion and clear audio signal amplification.
10. Datasheet: For precise details regarding electrical characteristics, pin configuration, and usage, it’s essential to refer to the datasheet provided by the manufacturer.
