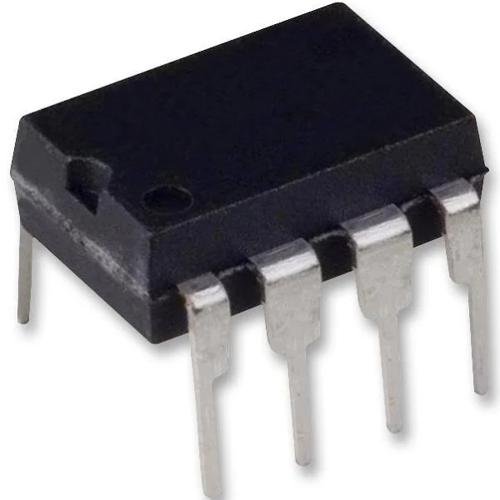

LM2903P . Analogue Comparator Dual Differential 2 Comparators

Description

1. IC Type: The LM2903P is a dual differential comparator IC, containing two separate comparator units.
2. Comparator Function: Comparators are used to compare two voltage inputs and provide a digital output based on the comparison result. The LM2903P has two independent comparator channels.
3. Low Response Time: The LM2903P is known for its low response time, with a typical response time of 1.3 microseconds, making it suitable for applications where rapid voltage comparisons are necessary.
4. Wide Voltage Range: It can handle a wide range of input voltages, typically from 2V to 36V, allowing for versatile voltage comparison.
5. Input Pins: Each comparator typically has two input pins: one for the non-inverting input (+) and one for the inverting input (-).
6. Output Pins: The LM2903P provides outputs that go high or low based on the comparison of the input voltages. It often features open-collector outputs, allowing for flexible interfacing with external circuitry.
7. Voltage Compatibility: The IC can work with a wide range of supply voltages, typically up to 36V.
8. Temperature Range: The IC is typically designed for operation over a wide temperature range, ensuring its stability across various environmental conditions.
9. Applications: The LM2903P is commonly used in applications where precise voltage comparisons are needed, such as signal conditioning, window comparators, and other comparator applications.
10. Datasheet: For precise details regarding electrical characteristics, pin configuration, and usage, it’s essential to refer to the datasheet provided by the manufacturer.
