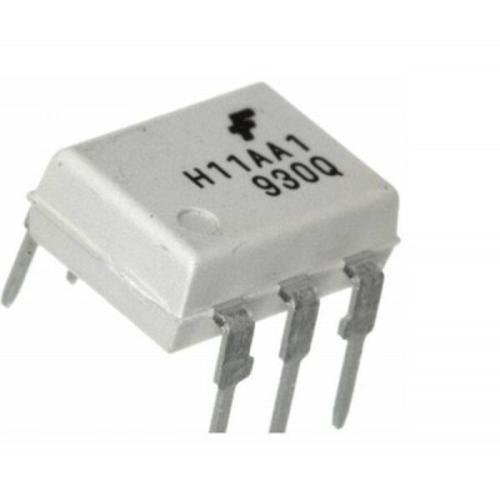

H11AA1 Transistor Output Optocoupler IC DIP-6 Package

Description

1. Optical Isolation: The H11AA1 provides electrical isolation between the input and output circuits. This isolation protects sensitive components and ensures that no direct electrical connection exists between the two sides.
2. Infrared Emitter (LED): The input side of the H11AA1 includes an infrared LED that emits light when a forward current is applied to it. This emitted light is used to transfer signals to the output side.
3. Phototransistor Output: The output side of the H11AA1 is equipped with a phototransistor that detects the emitted infrared light and produces an electrical current in response. The phototransistor acts as a switch that can be used to control or monitor another circuit.
4. DIP-6 Package: The H11AA1 comes in a 6-pin Dual Inline Package (DIP). The DIP package is easy to mount on a circuit board using through-hole soldering, and it offers stability and reliability.
5. High Isolation Voltage: This optocoupler is designed to handle relatively high isolation voltage levels, making it suitable for applications with voltage spikes or high potential differences between input and output.
