CD4556 Dual 1-of-4 Decoder/Demultiplexer IC DIP-16 Package

Description

1. IC Type: The CD4556 is a dual 1-of-4 decoder/demultiplexer IC.
2. Dual Decoder/Demultiplexer: It contains two separate decoder/demultiplexer units within a single IC package.
3. 1-of-4 Decoder: Each decoder unit can take a 2-bit binary input and select one of the four outputs based on the binary input.
4. Demultiplexer Function: It can function as a demultiplexer, allowing you to route a single input to one of the four possible outputs.

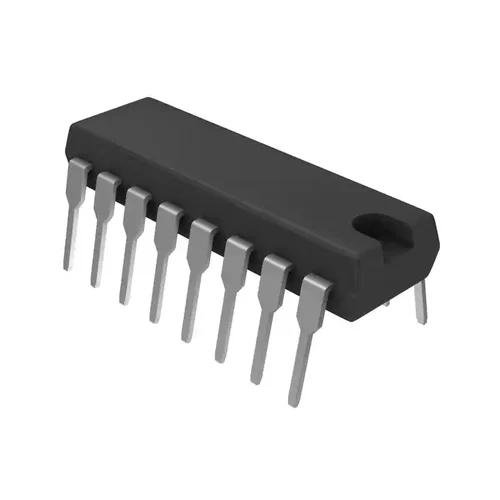

5. DIP-16 Package: The IC is housed in a DIP-16 package, which is a common through-hole package style used in various electronic circuits.
6. Input Pins: Each decoder has two input pins, accepting a 2-bit binary input.
7. Output Pins: Each decoder has four output pins, corresponding to the four possible output lines.
8. Enable Pins: CD4556 typically has enable pins to enable or disable the decoding function.
9. Decoding Logic: The IC employs logic gates internally to decode the input and activate the corresponding output line.
10. Applications: It can be used in various digital circuit applications, such as data routing, address decoding in microcontroller or microprocessor systems, and signal demultiplexing.
11. Voltage Compatibility: Make sure to check the voltage compatibility of the CD4556 with your application, as it may vary depending on the version or manufacturer.
12. Datasheet: For detailed information on electrical characteristics, pin configuration, and usage, it’s essential to refer to the datasheet provided by the manufacturer.
