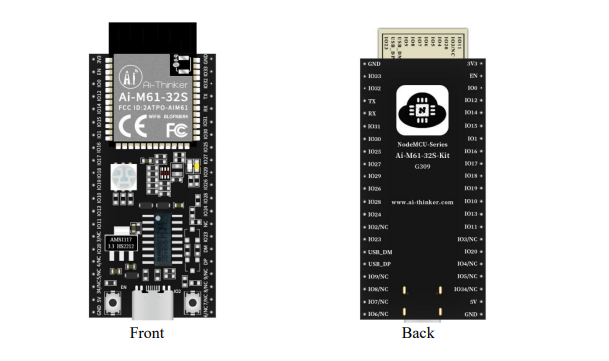

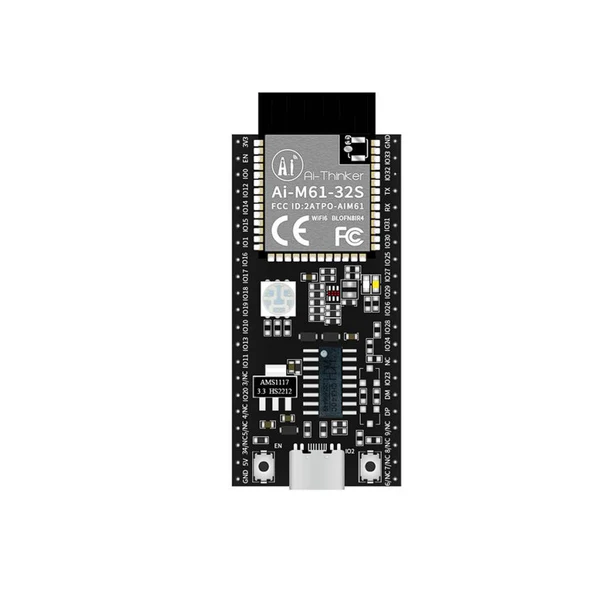

Ai-Thinker Ai-M61-32S-Kit

The Ai-M61-32S-Kit Development Board is designed for the Ai-M61-32S module, featuring the powerful BL618 chipset with a 32-bit RISC-V CPU running up to 320 MHz. It supports Wi-Fi 6 (802.11 b/g/n/ax), Bluetooth 5.3, and Thread protocol, ensuring fast and reliable wireless connectivity.

The board provides a wide range of interfaces including USB 2.0, Ethernet, SD/MMC, SPI, UART, I2C, I2S, PWM, ADC/DAC, and GPIO, making it suitable for IoT, smart home, multimedia, and wearable applications.

It also includes a built-in security engine supporting AES, SHA, PKA, and TRNG, along with secure boot features like image encryption and signature verification.

Overall, this kit offers a compact, secure, and versatile solution for developing next-generation connected devices.

Features:

1. Support Wi-Fi/BLE/Thread coexistence
2. Wi-Fi security support WPS/WEP/WPA/WPA2/WPA3
3. Supports 20/40MHz bandwidth, 1T1R, maximum rate 229.4 Mbps
4. Support STA, SoftAP, STA + SoftAP, and sniffer modes
5. 32-bit RISC-V CPU with FPU and DSP, with a maximum dominant frequency of 320M 4MB pSRAM,532KB SRAM,128KB ROM,4Kb eFuse
6. Supports DVP, MJPEG, Display, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc.  Support Camera Sensor DVP interface
