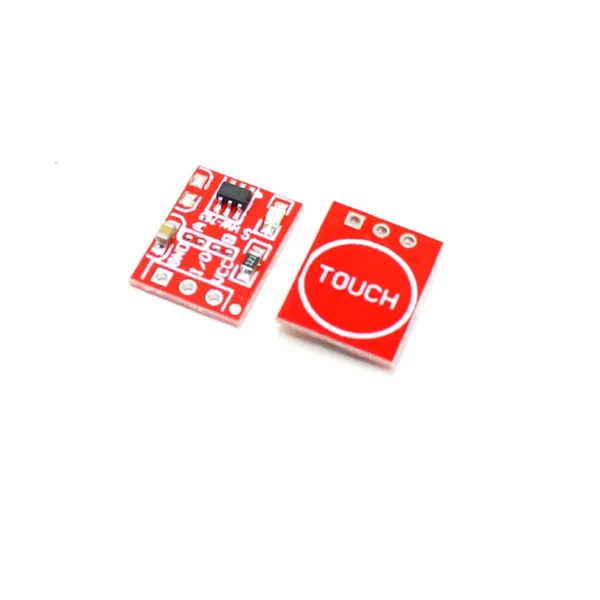

TTP223 1-Channel Capacitive Touch Sensor Module Red Color
In Stock
In Stock
Add to Wishlist
CompareAdd to Wishlist
-
Input Voltage : 2 Volt – 5.5 Volts DC.
-
The response time max ~ 60mS in fast mode, ~220mS at low power mode @VDD=3V.
-
Sensitivity can adjust by the capacitance(0~50pF).
-
Stable touching detection of the human body for replacing traditional direct switch key.
-
Provides direct mode toggle mode by pad option(TOG pin).
-
After power-on have about 0.5sec stable-time, during the time do not touch the keypad, and the function is disabled.
-
Auto calibration and Re-calibration period is about 4.0 sec when the key has not be touched.
-
TTP223 1-Channel Capacitive Touch Sensor Module Red Color
Description
- Capacitive Touch Sensing: Detects touch or proximity without the need for physical contact.
- Single Touch Channel: Features one touch-sensitive pad for simple touch detection.
- Digital Output: Provides a digital high/low output signal when touched.
- Adjustable Sensitivity: Some variants offer adjustable sensitivity settings.
- Low Power Consumption: Designed for low power consumption.
- Compact and Easy to Use: Compact module with convenient terminals for easy integration.
