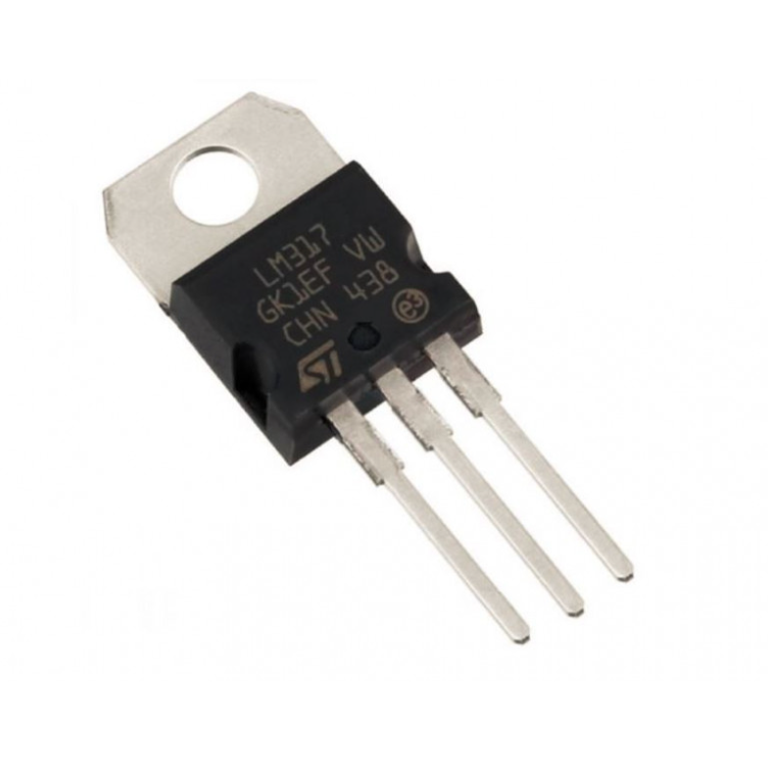

LM317 IC – Variable Voltage Regulator IC

Description

• IC Type: LM317 Variable Voltage Regulator IC
• Package Type: Available in various package types, such as TO-220, TO-92, and more.
• Voltage Regulation: The LM317 provides adjustable voltage regulation, allowing you to set the output voltage to a desired level.
• Adjustable Output: Output voltage can be adjusted using two external resistors, providing a wide range of voltage output options.
• Output Current: Capable of providing an output current of up to 1.5A, depending on the specific model and configuration.
• Input Voltage: The LM317 typically operates with an input voltage greater than the desired output voltage, ensuring proper regulation.
• Applications: Widely used in electronic circuits where stable and adjustable voltage sources are required, such as power supplies, battery chargers, and more.
• Protection Features: Some versions of the LM317 include protection features like thermal shutdown and current limiting to protect the IC and connected components.
• Low Dropout: The LM317 is known for having a relatively low dropout voltage, meaning it can maintain regulation even when the input voltage is only slightly higher than the desired output voltage.
• Temperature Stability: Provides good temperature stability, which is important for maintaining accurate voltage regulation over a range of operating conditions.
• Compact and Versatile: Its small form factor and ease of use make it a popular choice for a wide range of voltage regulation applications.
