Description

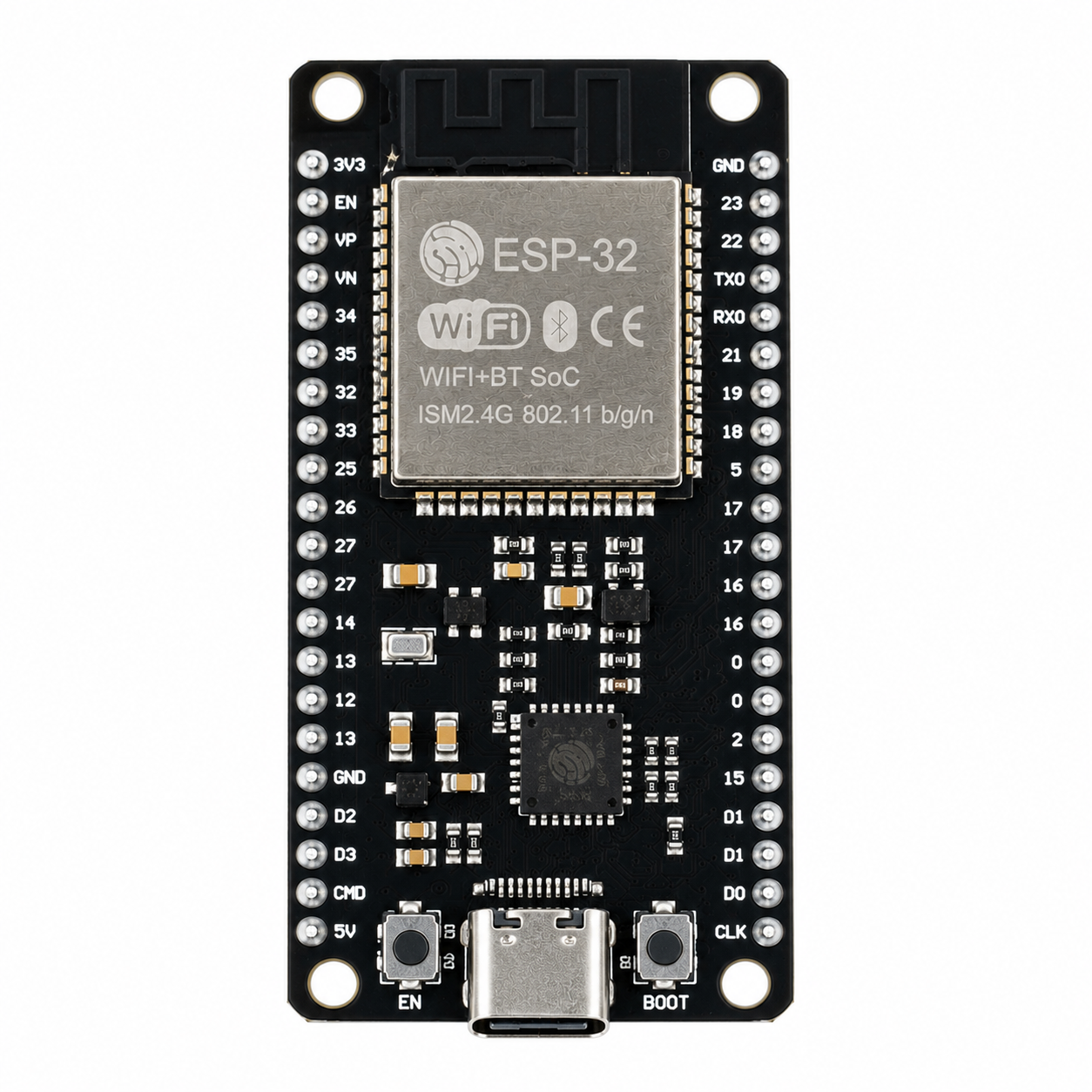

• Powerful ESP-32 WiFi + Bluetooth Module: The metal-shielded ESP-32 WROOM module gives you built-in WiFi and Bluetooth, so you can build wireless projects without extra modules.
• Modern Type-C USB Interface: Power the board and upload code with a standard Type-C cable. The reversible connector plugs in either way.
• Onboard USB-to-Serial Conversion: No external programmer is needed. Plug in, select the port, and upload.
• Dual-Core Processing: Run sensor reading, wireless communication, and your main logic at the same time.
• 30-Pin GPIO Breakout: Pins are clearly printed on the board and include EN, VP, VN, D34, D35, D32, D33, D25, D26, D27, D14, D12, D13, D23, D22, TX0, RX0, D21, D19, D18, D5, TX2, RX2, D4, D2, D15, VIN, 3V3, and GND (two pins).
• Multiple Interfaces: Supports ADC, PWM, I2C, SPI, UART, and touch-capable pins for sensors, displays, relays, and modules.
• EN and BOOT Buttons: EN resets the board, and BOOT puts it into flashing mode when needed.
• Built-In PCB Antenna: Gives stable wireless connectivity for WiFi dashboards, BLE devices, and remote control.
• Onboard Voltage Regulator: Accepts 5V input and provides 3.3V for the ESP-32 module.
• Corner Mounting Holes: Easy to fix inside enclosures and project boxes.
• Works With Popular Platforms: Arduino IDE, ESP-IDF, MicroPython, PlatformIO, and Espressif tools.
