CD4555 Dual 1-of-4 Decoder/Demultiplexer IC DIP-16 Package Product Discription

Description

1. Demultiplexer Function: It acts as a demultiplexer, allowing you to route a single input to one of the four possible outputs.

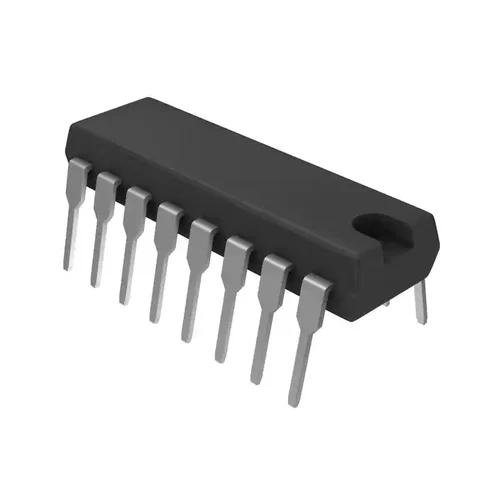

2. DIP-16 Package: The IC comes in a DIP-16 (Dual In-line Package) configuration, making it easy to interface with standard through-hole PCBs.
3. Input Pins: Each decoder has two input pins, accepting 2-bit binary inputs.
4. Output Pins: Each decoder has four output pins, corresponding to the four possible output lines.
5. Enable Pins: CD4555 typically has enable pins to enable or disable the decoding function.
6. Decoding Logic: The IC employs logic gates internally to decode the input and activate the corresponding output line.
7. Applications: It can be used in various digital circuit applications, such as data routing, address decoding in microcontroller or microprocessor systems, and signal demultiplexing.
8. Voltage Compatibility: It is important to check the voltage compatibility of the CD4555 with your application as it might vary depending on the version or manufacturer.
9. Datasheet: For detailed information on electrical characteristics, pin configuration, and usage, it’s essential to refer to the datasheet provided by the manufacturer.
