Description

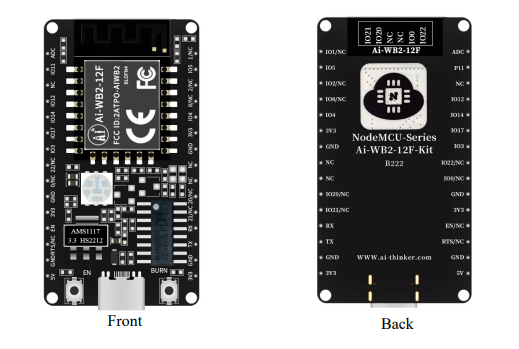

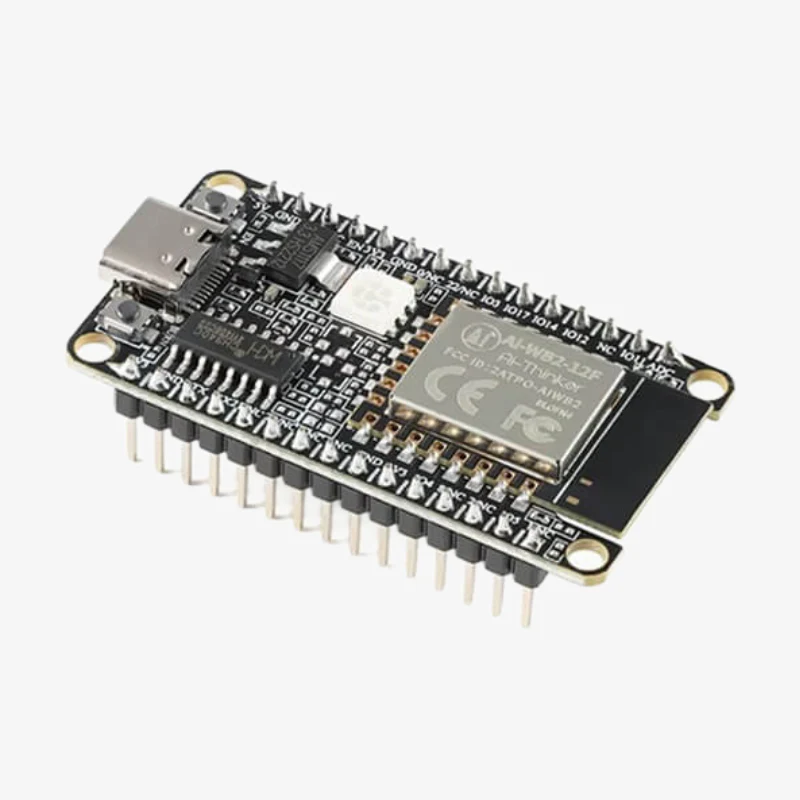

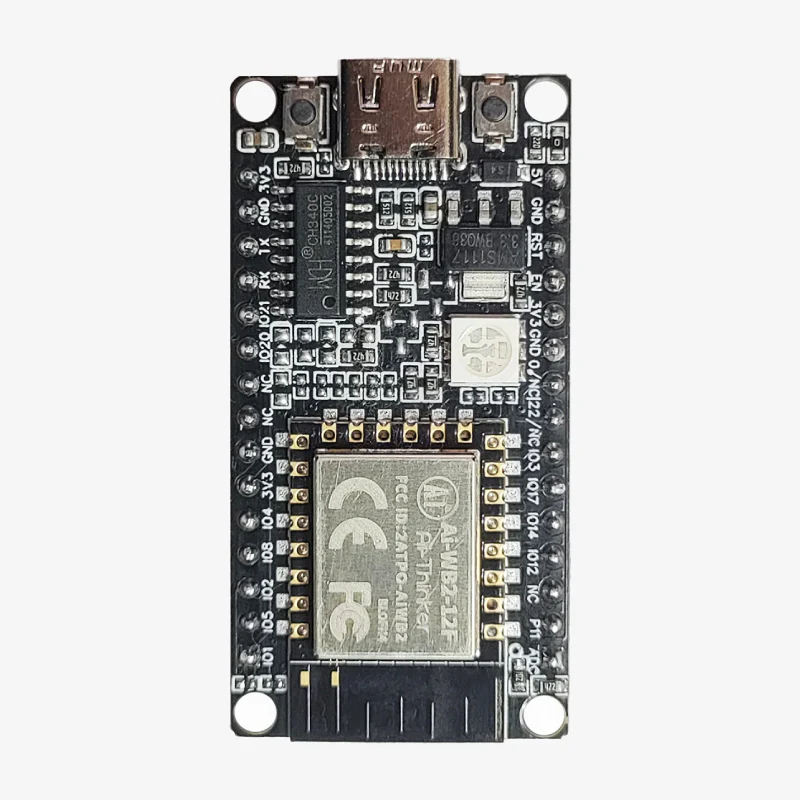

Ai-Thinker WB2-12F-KIT

The Ai-WB2-12F-Kit Development Board is a versatile development platform designed for the Ai-WB2-12F module. Powered by the BL602 chipset, it combines Wi-Fi (802.11 b/g/n) and Bluetooth 5.0 connectivity, making it ideal for a wide range of IoT and wireless applications.

The onboard 32-bit RISC CPU ensures efficient performance with low power consumption, supported by 276KB RAM for smooth operation. The module also offers a rich set of peripheral interfaces including SPI, UART, SDIO, PWM, ADC, DAC, IR, PIR, and GPIO, enabling easy integration with sensors, displays, and other components.

Perfect for IoT, smart home systems, wearable devices, and embedded projects, the Ai-WB2-12F-Kit provides a reliable and flexible platform for developers to build connected solutions.

Key Features:

• Compact SMD-22 package for easy integration
• Dual wireless connectivity (Wi-Fi + BLE)
• High-level security for IoT applications
• Suitable for IoT, smart home, wearables, and embedded systems
