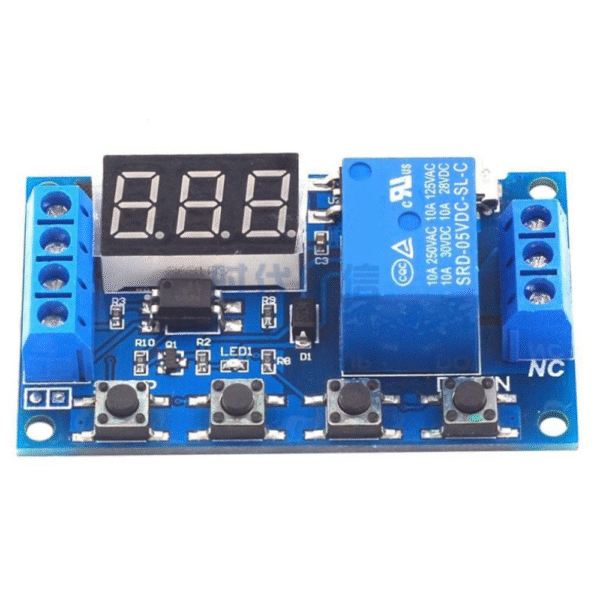

6-30V 1-Channel Power Relay Module with Adjustable Timing Cycle

Description

• Voltage Range: The relay module is compatible with a wide input voltage range, typically from 6 to 30 volts DC. This flexibility makes it suitable for a variety of power supply configurations.
• Single-Channel Relay: This module features a single high-current relay channel, capable of switching electrical loads up to the relay’s specified rating, often ranging from 10A to 30A, depending on the specific model.
• Adjustable Timing Cycle: One of the standout features of this module is the ability to adjust the timing cycle. Users can set the ON and OFF time intervals according to their requirements, allowing for customized control of connected devices.
• Relay Status Indication: Many relay modules include LED indicators to display the status of the relay (ON or OFF). This visual feedback aids in monitoring the relay’s operation.
• Screw Terminals: The module typically features screw terminals for easy and secure connections to external devices and power sources. This makes installation and wiring straightforward.
• Reliable Relay: The built-in relay is designed for durability and reliability, with a long operational life and the ability to handle high inrush currents common in many applications.
• Triggering Methods: The relay can be triggered using various methods, such as manual switches, digital logic signals, or microcontroller outputs. Some modules also provide opto-isolation to protect sensitive electronics from voltage spikes.
• Protection Circuitry: Certain models may incorporate protection features like overcurrent protection and reverse polarity protection to safeguard the module and connected equipment.
• Compact Design: The compact form factor of this module allows for easy integration into control panels, enclosures, or project boxes.
