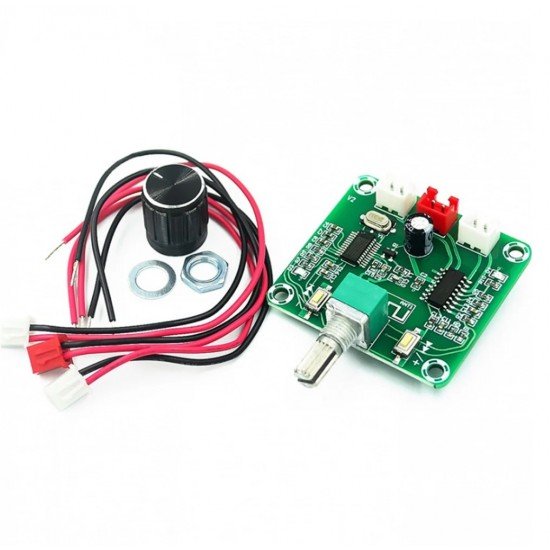

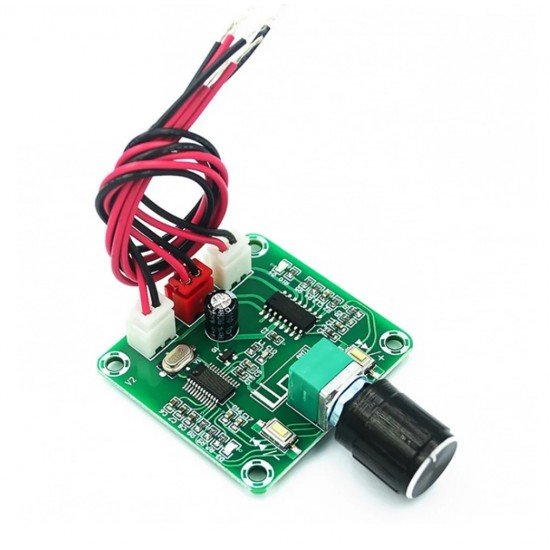

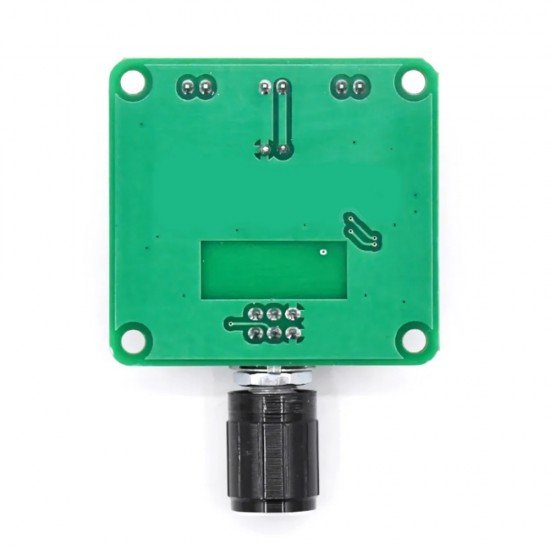

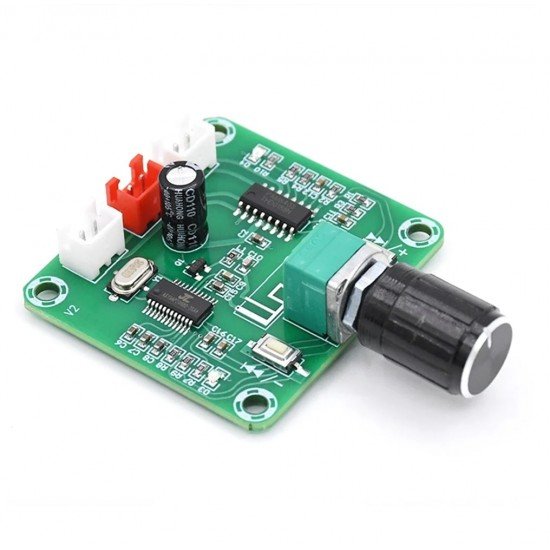

XH-A158 PAM8403 BLE5.0 Audio Amplifier Board (5W+5W)

SKU: XA1P8B5AB
In Stock
₹299.00 Original price was: ₹299.00.₹160.00Current price is: ₹160.00.
In Stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
Compare
Other people want this. 1 people have this in their carts right now.
This item is low in stock.

Item(s) left: 1

SKU: XA1P8B5AB Categories: , Tags: , , , , , , , , ,

XH-A158 PAM8403 BLE 5.0 Audio Amplifier Board (5W+5W)

The XH-A158 combines Bluetooth 5.0 connectivity and the efficient PAM8403 amplifier into a single compact module, making it an excellent solution for building small wireless speaker systems. Its simple 5V operation, low power consumption, and quality stereo output make it suitable for hobbyists, students, and makers looking for an easy-to-use audio amplifier board.

Applications

  • DIY Bluetooth Speakers
  • Portable Audio Systems
  • Wireless Sound Boxes
  • Educational Electronics Projects
  • Battery-Powered Speaker Systems
  • Home Audio Experiments
  • Embedded Audio Applications

Description

XH-A158 PAM8403 BLE 5.0 Audio Amplifier Board (5W+5W)

The XH-A158 PAM8403 BLE 5.0 Audio Amplifier Board is a compact and efficient wireless audio module designed for DIY Bluetooth speakers, portable sound systems, and embedded audio projects. Powered by the PAM8403 Class-D amplifier IC, it delivers clear stereo sound with low distortion while providing up to 5W + 5W output power. The onboard Bluetooth 5.0 connectivity ensures stable wireless audio streaming with improved range and lower power consumption.

Key Features

  • Bluetooth 5.0 wireless audio receiver
  • PAM8403 Class-D stereo amplifier
  • Dual-channel stereo output (5W × 2)
  • Clear audio with low distortion
  • Compact and lightweight design
  • Operates from a standard 5V DC supply
  • Onboard playback and volume control buttons
  • Compatible with 4Ω to 8Ω speakers
  • Ideal for DIY wireless speaker projects
  • Low power consumption and high efficiency

XH-A158 PAM8403 BLE 5.0 Audio Amplifier Board (5W+5W)

Specifications

Parameter Details
Model XH-A158
Amplifier IC PAM8403
Bluetooth Version 5.0
Channels 2 Channel Stereo
Output Power 5W × 2
Supply Voltage DC 5V
Audio Input Bluetooth
Amplifier Type Class-D
Recommended Speaker Impedance 4Ω – 8Ω
Dimensions Approx. 45 × 42 × 25 mm
Weight Approx. 22 g

Additional information

Weight 0.2 kg

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.
