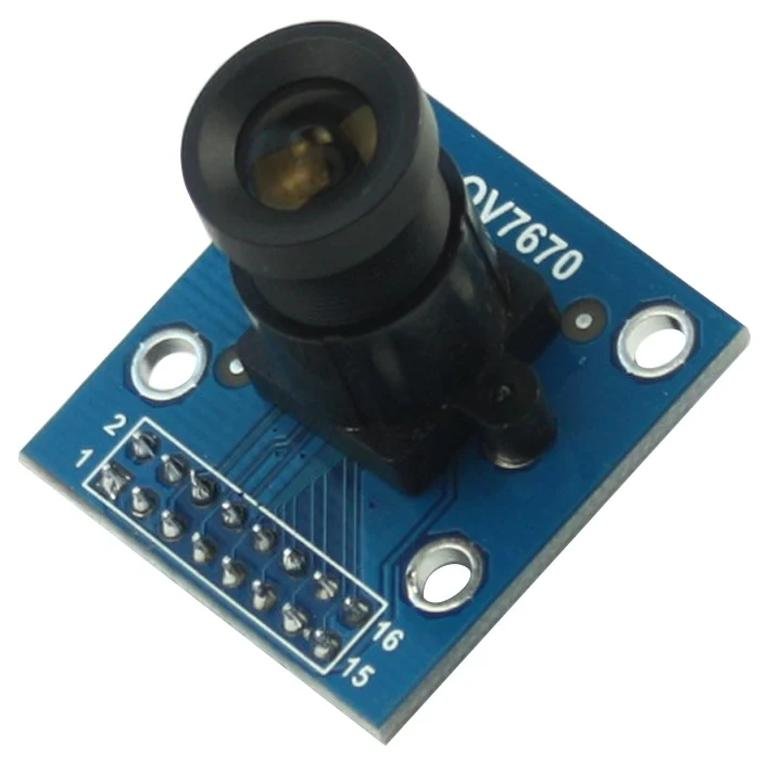

OV7670 Camera Module

Description

1. Image Sensor: The OV7670 module is equipped with an image sensor that can capture images and video in various resolutions, typically ranging from low VGA (640×480) to QVGA (320×240) and QQVGA (160×120).
2. Communication Interface: It typically uses an I2C (Inter-Integrated Circuit) interface for configuration and control. The I2C interface allows you to adjust settings such as resolution, frame rate, and exposure.
3. Color Support: The OV7670 camera module is capable of capturing color images, and it supports various color formats, including RGB565, RGB555, YUV422, and YUV420.
4. Frame Rate: The frame rate of the OV7670 module can be adjusted depending on the resolution and requirements of your application. Lower resolutions often allow for higher frame rates.
5. Lens Options: Some versions of the OV7670 module come with a lens, while others are designed to be used with external lenses. The choice of lens can affect the field of view and focus.
6. Power Supply: The module typically operates on a low voltage, commonly 3.3V or 5V, depending on the specific module. You should provide the required voltage and current for proper operation.
7. Applications: The OV7670 camera module is used in various applications, including:
   • Robotics and automation
   • Surveillance systems
   • DIY camera projects
   • Image processing and computer vision applications
   • Embedded systems and IoT devices
8. Compatibility: The module is compatible with various microcontrollers and development platforms, including Arduino, Raspberry Pi, and other embedded systems.
9. Software Support: Several libraries and software packages are available for interfacing with the OV7670 module and processing the captured images and video. These libraries often simplify the integration of the module into your projects.
10. Connector: The module typically features a connector or pin headers for interfacing with microcontrollers and other electronic components.
11. Control and Configuration: You can configure various parameters of the OV7670, such as exposure, white balance, and color effects, via the I2C interface and appropriate software libraries.
12. Storage: The module itself doesn’t have built-in storage. To save captured images or video, you may need to connect it to external storage devices or microcontrollers with storage capabilities.
