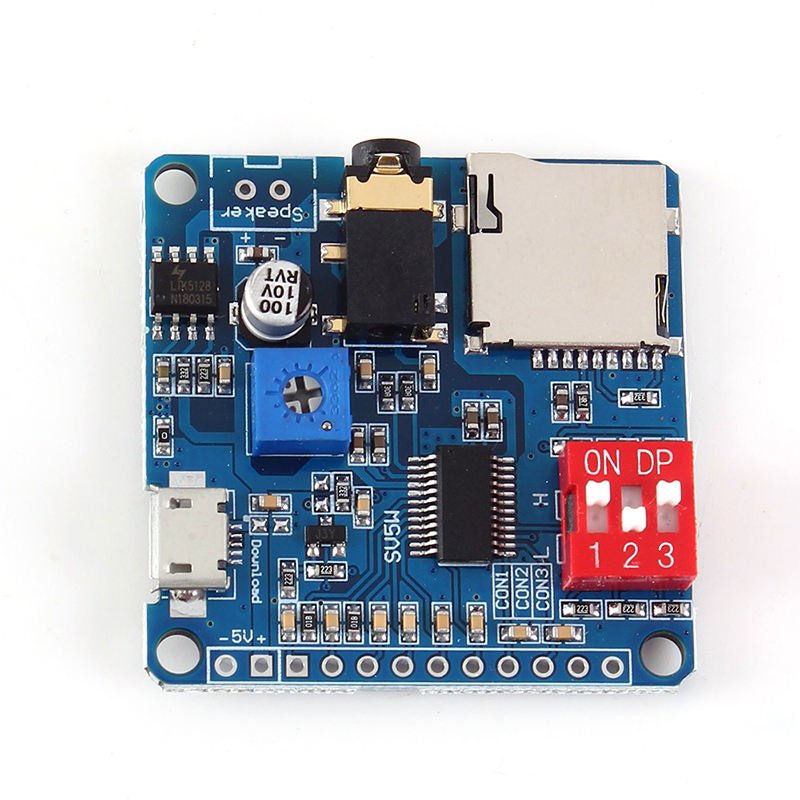

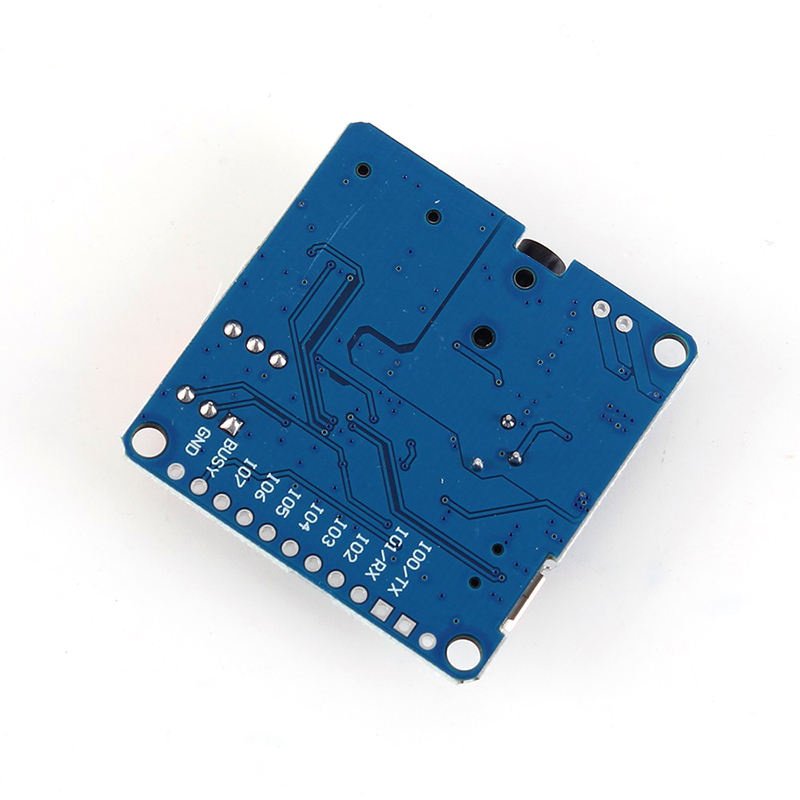

DY-SV 5W MP3 Player Audio Playback Module
DY-SV 5W MP3 Player Audio Playback Module

DY-SV 5W MP3 Player Audio Playback Module

Out of stock
₹649.00 Original price was: ₹649.00.₹289.00Current price is: ₹289.00.
Out of stock
Add to Wishlist
Add to Wishlist
Category: Tags: , , ,

DY-SV 5W MP3 Player Audio Playback Module

This module makes it easy to add sound playback functionality to microcontroller like – Arduino, ESP32, Raspberry Pi etc. The sound files can also be played independently, without the need for a microcontroller. The sould files can be played by passing digital IO signals to the specific pins (check datasheet for more info). Switches can be used to control the sound playback.

This module is great for playing audio files in voice assistants, GUI menus, greeting and alert messages, greeting cards, welcome messages, etc.

Description

DY-SV 5W MP3 Player Audio Playback Module

DY-SV 5W MP3 Player Audio Playback Module can be used to play sound/music. Just upload the sounds that are to play on an SD Card, connect a suitable speaker to this module and you can start playing music/sound/voice files.

All required operations can be performed over UART – select the file, start/stop playback, increase/decrease volume, etc.

Features:

  • Model: DY-SV5W
  • Dynamic range support of 90 dB, SNR support of 85 dB, 24-bit DAC output.
  • Support MP3 and WAV decoding formats. Support Maximum 32Gbit(4MByte) TF card.
  • Supporting the I/O trigger feature, 8-bit I/O ports can trigger up to 255 songs by combining 8 I/Os to trigger 8 different songs.
  • Insert an SD card with the required audio files, and use a microcontroller to control playback through UART.

DY-SV 5W MP3 Player Audio Playback Module

Humidity range0% - 95%RH
Operating Temperature Range-20°C to 85°c
Working VoltageDC 5V
Dimensions (LxWxH)40x40x9 mm

Additional information

Weight0.5 kg
