Description

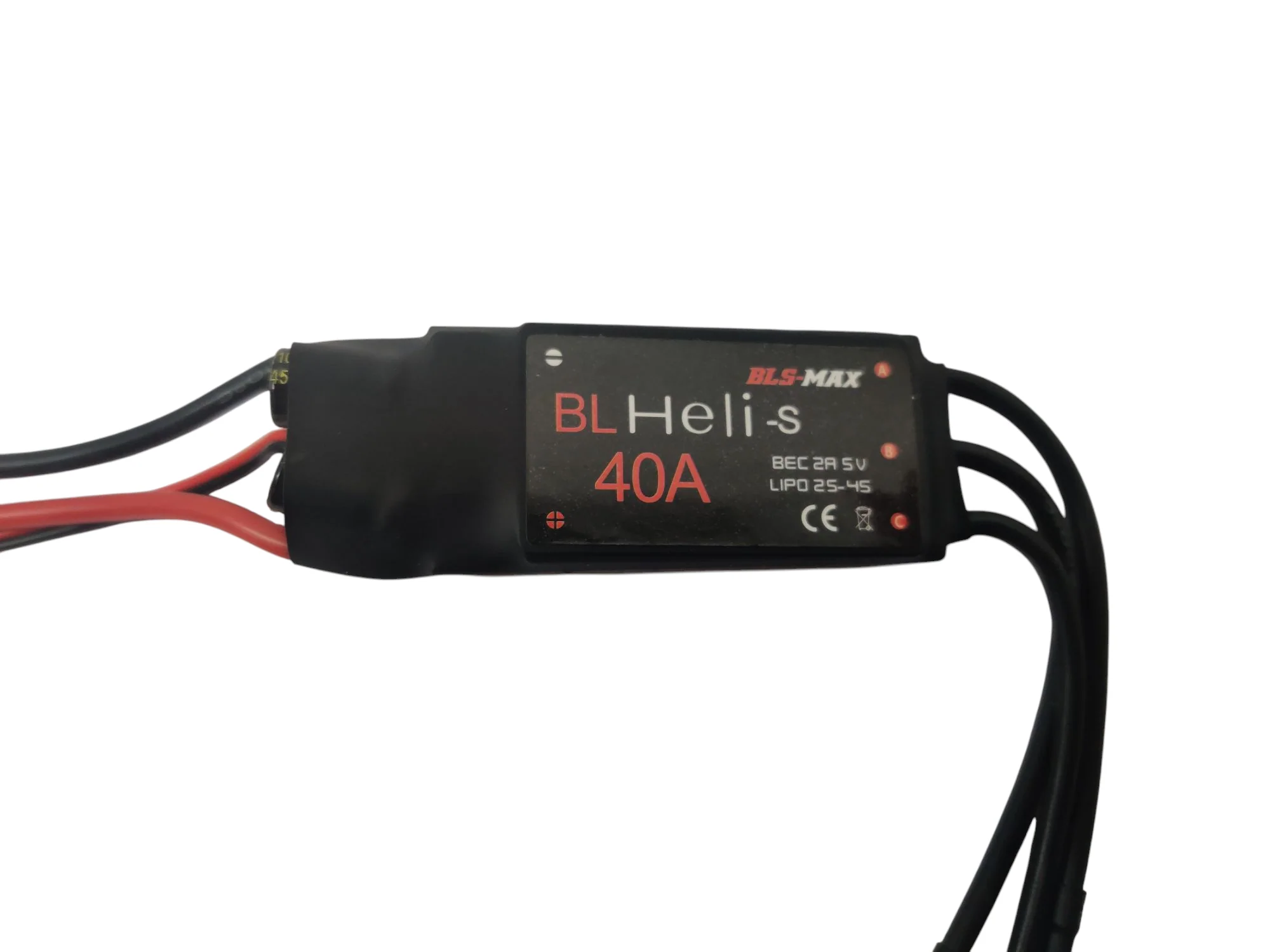

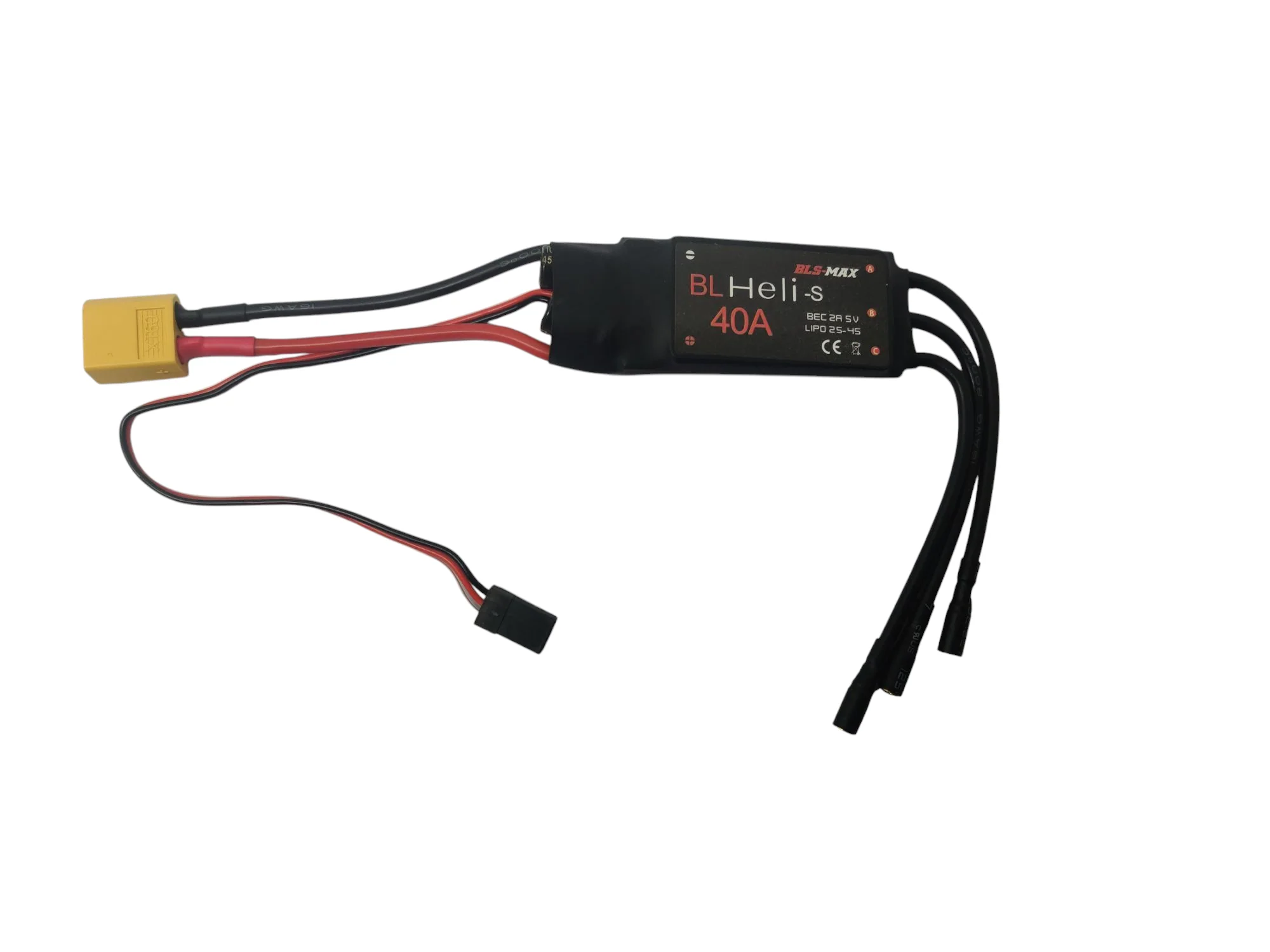

BLS-MAX BLHeli-s 40A ESC with XT-60

The BLS-MAX BLHeli-s 40A ESC with XT60 connector is a high-performance electronic speed controller designed for use with brushless motors.

Common applications: Drones, Airplanes, Boats, and Helicopters.

Equipped with BLHeli_S firmware, this ESC provides smooth and efficient motor control

Supports a wide range of throttle protocols, including DShot, Multishot, and Oneshot.

This ESC has a greater current handling capacity which is 40A continuous.

• Based on BL Heli firmware, further optimized to the perfect drive performance.
• Low-voltage protection, over-heat protection, and throttle signal loss protection.
• Separate power supply for MCU and BEC, enhancing the ESCs ability to eliminate magnetic interference.
• Parameters of the ESC can be set via a program card or transmitter.
• Throttle range can be set to be compatible with different receivers.
• The applicable number of battery cells:2-4S.
• BEC output: 5V 2A
